Jaw Crusher

PE,PEX Series Single Toggle Jaw Crusher has the features of great crushing ratio,uniform siges of promance. It can be used to crush material its compressive resistance not more than 320 Mpa. PE series is used in primary crushing, PEX series is used in secondary crushing and fine crushing.

downloadDownload Jaw Crusher PDF

Jaw crushers are often used as primary crushers and are perhaps the most popular crusher worldwide. These compressive crushers are suitable for most any type of material.

In this type of crusher, reduction takes place between a stationary jaw plate and a moving jaw plate. The moving jaw plate is mounted on the pitman, which is given a reciprocating motion. Crushing takes place when the pitman moves toward the stationary jaw, compressing the material.

Jaw Crusher

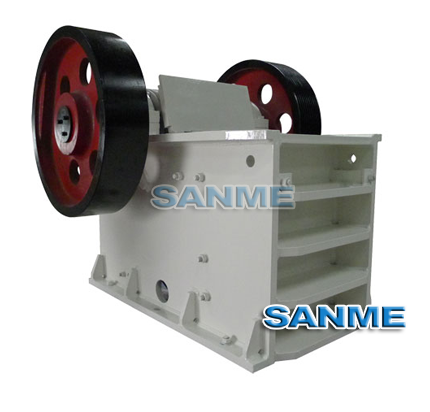

jaw crusher picture

The Features and Benefits of Jaw Crusher:

1.Simple structure and reliable operation
2.Easy maintenance and low operating cost
3.The frame of jaw crusher is very firm due to removing welding residual stress

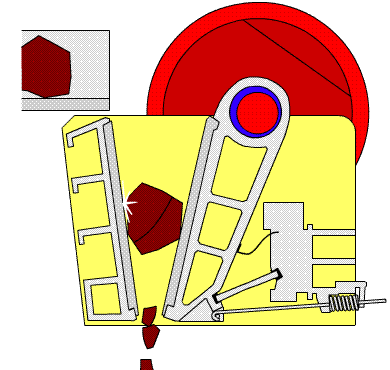

Jaw crusher animation demo

jaw crusher animation demo

Jaw crusher composition-structure

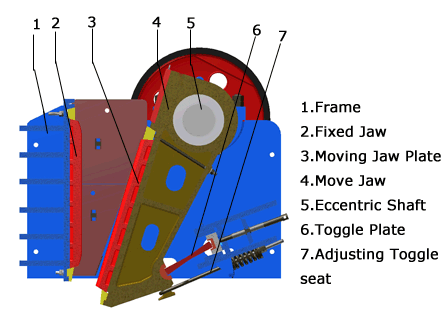

It is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.

jaw crushers work process

Jaw crusher special remarks:

Please carefully examine the fasteners, especially lubrication components and bolts, before the machine is started. Enough oil must be needed on each lubrication component. Fasten the loose bolts, clear the crushing cavity, and then start the machine. During the normal operation, even material feeding is important. Insufficient load or over load is not allowed. Moving jaw plate, fixed jaw plate, side guard plate and roof plate are wearing parts, and much attention should be paid to them.

Sanme offers complete jaw and cone crusher systems designed specifically to meet your crushing needs. We have a wide range of cone crusher and jaw crusher models to handle various type of aggregate product and process capacities. Jaw crusher sizes are available from 25x40 to 120x150. Please refer to the jaw crusher chart for more details. Contact a YIFAN engineer today for your jaw crusher inquiries.

Working Principle of pe/pex jaw crusher:

This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.

Technical Parameter of PE/PEX Jaw Crusher

Model Size of Feed Opening(mm) Max Feed Size(mm) Discharge Range Opening(mm) Capacity(m3/h) Motor Power(kw) Weight(t)
PE-400×600 400×600 340 40-100 10-35 30 6.5
PE-500×750 500×750 425 50-100 25-60 55 10.6
PE-600×900 600×900 500 65-180 30-85 55-75 15.5
PE-750×1060 750×1060 630 80-180 72-150 90-110 28
PE-800×1060 800×1060 680 100-200 85-143 90-110 30
PE-870×1060 870×1060 750 170-270 145-235 90-110 30.5
PE-900×1200 900×1200 780 95-255 100-240 110-132 49
PE-1000×1200 1000×1200 850 195-280 190-275 110-132 51
PE-1200×1500 1200×1500 1020 150-300 250-500 200-220 100.9
PEX-250×1000 250×1000 210 25-60 10-32 30-37 6.5
PEX-250×1200 250×1200 210 25-60 13-38 37 7.7
PEX-300×1300 300×1300 250 20-90 10-65 75 11

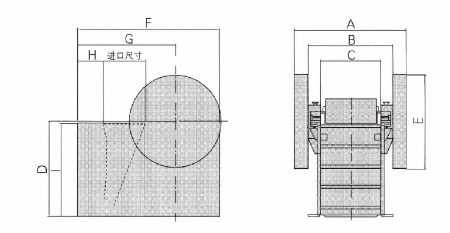

Overall Dimensions(mm) of PE/PEX Series Jaw Crusher:

Overall Dimensions

Model A B C D E F G H I
PE-400×600 1732 1110 636 1105 962 1565 955 255 990
PE-500×750 1916 1256 820 1270 1200 1890 1370 435 1185
PE-600×900 1840 1400 960 1540 1515 2305 1590 390 1505
PE-750×1060 2472 1820 1060 2010 1660 2450 1850 530 1980
PE-800×1060 2556 1780 1060 1970 1660 2610 2010 585 1840
PE-870×1060 2556 1780 1060 1970 1660 2660 2060 585 1840
PE-900×1200 3182 1976 1200 2125 1800 3335 2155 830 2530
PE-1000×1200 3182 1976 1200 2125 1800 3435 2255 830 2530
PE-1200×1500 3732 1780 1620 2700 2285 4200 2940 970 3480
PEX-250×1000 1992 1500 1010 930 900 1530 905 330 850
PEX-250×1200 2192 1700 1220 930 1000 1900 965 365 850
PEX-300×1300 2320 1840 1320 1110 1228 1750 1170 430 930

Modular and Portable Jaw Crushers

Modular Jaw Crushers Portable Jaw Crushers

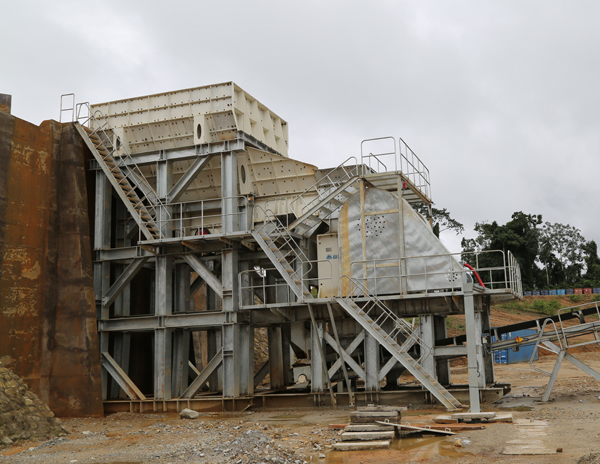

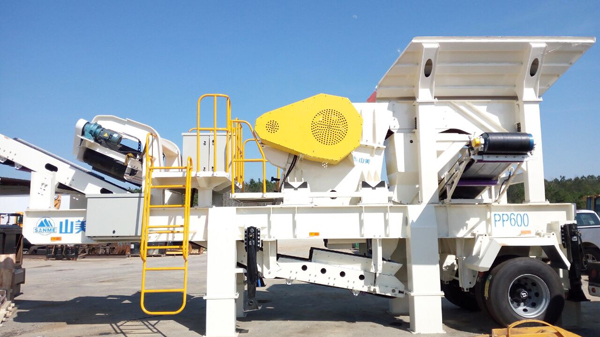

SANME offers a wide variety of modular and portable jaw crusher units specifically design to meet your particular crushing needs. SANME offers complete jaw and cone crusher systems designed specifically to meet your crushing needs. We have a wide range of cone crusher and jaw crusher models to handle various type of aggregate product and process capacities. Jaw crusher sizes are available from 10x20 to 56x72. Please refer to the jaw crusher chart for more details. Contact a Westpro engineer today for your jaw crusher inquiries!
