Hydraulic Cone Crusher

SMH series Hydraulic Cone Crusher is the introduction of the latest German technology and development with the world's advanced level of high energy cone crusher, it not only improves the production capacity and crushing efficiency, but also expanded the scope of application, from limestone to basalt, from stone production to a variety of ore crushing, it can be in a variety of pieces, fine, super fine work with incomparable crushing performance. Is the mine construction industry to replace spring cone crusher and the renewal of the general Hydraulic Cone Crusher is the latest generation of products, is a large stone factory and mining crusher is the most ideal equipment.

Hydraulic Cone Crusher Application:

SMH series hydraulic cone crusher adopting world advanced technology is designed and made through to be the crusher of world advanced level.  hydraulic cone crusher  is widely used in metallurgical, architectural, water and electricity, traffic, chemical, architectural material industries. It is suitable for crushing varies of mid hard and above mid hard ores and rocks.

Hydraulic Cone Crusher

Hydraulic Cone Crusher Feature and Advantage:

SMH Series high efficiency Hydraulic Cone Crusher has a better performance compared with other ordinary Hydraulic Cone Crusher.Sanme,cone crusher for sale,hydraulic cone crusher factory.

1.A high crushing ratio and production efficiency:the connection of higher turning speed and stroke makes the rated power and passing capacity improved greatly and the crushing ratio and capacity increased.

2.Hydraulic protection and hydraulic cavity clearing, high automatization and less stop production and repairing time:the discharge opening adjusted by hydraulic and overload protection makes performance of the crusher increased by a large extent, the maintenance and operation easier, the repairing time shorter.; the bidirectional metal releasing hydraulic vat makes slab pass through crushing cavity;the crusher can discharges materials automatically when the hydraulic works under the conditions of iron passing and instantaneous overloading, thus there is no trouble of stopping the crusher to discharge materials by hand.

3.Less spare part consuming and low operation cost:Advanced crushing principle and technical data, reliable operation and low operation cost. All parts of the crusher have anti-wearing protection, which can make the life time of spare parts increased by 30% and the maintenance costs decreased to the lowest. The crusher avoids the disadvantages of impact crusher like low average crushing ratio, large energy consumption, fast abrasion of hammer, impact plate and lining board.Sanme,cone crusher for sale,hydraulic cone crusher factory.

4.Thin oil lubrication makes the life time increased:Unique design of thin oil lubrication system prolongs life time of the crusher, high performance and not touchable labyrinth airproof part blocks off the dust and remove the common disorders like the mixture of oil and water in spring cone crusher.

5.Easy maintenance and operation:All parts of SMH Hydraulic Cone Crusher can be assembled, disassembled and repaired from the top and side part, including the fixed cone and movable cone. For the changing no need to disassemble the crusher body and fasten the bolts. Hydraulic motor makes the performance of crusher better.Sanme,cone crusher for sale,hydraulic cone crusher factory.

6.Manifold crushing cavity, flexible application, strong adaptability:It is only need to change fixed cone lining board and movable cone lining board; the type of crushing cavity can be changed from standard coarse cavity to short head fine cavity, which can meet various kinds of need.

7.The crusher can provide customers a higher capacity, better product shape, and easy be operated.

8.between-layer pressuring crushing and better finished product shape:The crusher adopts between-layer pressuring crushing principal and the suited turning speed, not the traditional single particle crushing principal. The special crushing cavity can makes the crusher crush materials selectively, thus the proportion of fine product and products of cubic shape be increased distinctly and products of lump size decreased by a large extent.(Sanme,cone crusher for sale. )

Hydraulic Cone Crusher Success Case
Hydraulic Cone Crusher Case

SANME offers complete jaw and cone crusher systems designed specifically to meet your crushing needs. We have a wide rang e of cone crusher and jaw crusher models to handle various type of aggregate product and process capacities. Contact a Westpro engineer today for your cone crusher inquiries.(Sanme,cone crusher for sale.)

Note: The capacity charts is for properly using SMH cone crusher and get to its capacity. Crusher is component of mining production line, so it’s character result from feeder, conveyor, screen, electric motor, drive part, surge bin. Noticing follow factors can enhance crusher capacity and character.

1、choose the right crushing cavity according to the materials be crushed.
2、the feeding size should be right.
3、Materials distributed equally around the round of crushing cavity.

4、Automatically control system.
5、Discharge opening of cone crusher works normally.
6、the model of belt conveyor be seasoned with the max processing ability of the crusher.

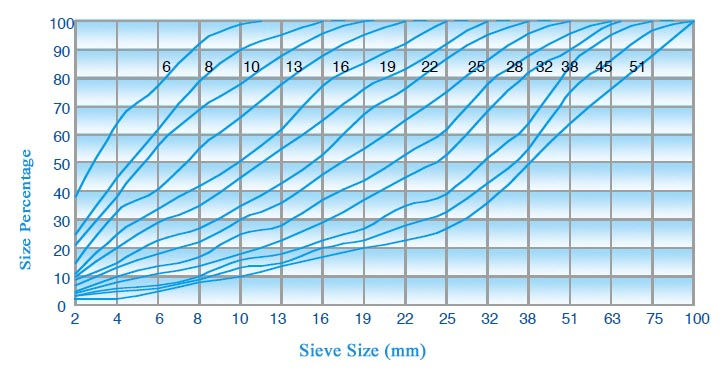

Particle size distribution curve
Particle size distribution curve

particle size in the table have something to do width feed particle size crushing chamber type, moisture content, material density, can be broken,the volume of the mud etc.(Sanme,cone crusher for sale. hydraulic cone crusher factory.)
downloadSMH Series Hydraulic Cone Crusher(PDF)

Hydraulic Cone Crusher when using some cautions:

Hydraulic Cone Crusher production capacity table can be used as a normal play HP series crusher production capacity of reference. Crusher is in the production line of a component. So its performance by feeder, belt machine, vibrating screen, motor, transmission part and a bunker is correct selection and operation effect. So the use of P series Hydraulic Cone Crusher attention the following factors can improve the Hydraulic Cone Crusher production capacity and performance:

1.sieving capacity;

2.lack of feeding control;

3.feed containing viscous material;

4.the broken material correct selection of crushing cavity;

5.crusher discharge zone is not smooth;The 44material is too hard or too tough.

6.feeding in less than the discharge port of fine crusher production capacity of more than10%;

7.broken along the cavity surrounding the feed distribution;The recommended the use of power;

8.feed size ratio appropriate;The33434 in a crushing chamber within the range of 360 degrees to the material distribution;

9.proper selection of prescreening and closed screening sieve sizes; and reduce the Hydraulic Cone Crusher production capacity factors:

10.automatic control device; the crusher discharge District smooth;The 6conveyor belt specifications and crusher maximum processing capacity to adapt;

Technical Data of SMH Series Standard Head Hydraulic Cone:

Model Max Feeding Size(mm) Discharge Range(mm) Moter Power(kw) Capacity(t/h) -- open circuit,closed discharge(mm)
9 13 16 19 22 26 32 38 51 63 76 89
SMH120C 160 22~32 75-90         120 130 150
SMH120M 130 13~26 75-90   65 85 100 120 130
SMH120F 50 9~19 75-90 40 60 80 90 110
SMH180C 180 22~32 132-160         185 195 215
SMH180M 140 13~32 132-160   90 115 135 160 180 200
SMH180F 60 9~22 132-160 60 80 100 120 140
SMH250C 220 26~51 160-220           250 290 340 395
SMH250M 150 16~38 160-220     125 140 165 220 275 330
SMH250F 80 9~22 160-220 70 90 115 130 150
SMH350EC 315 38~64 250-280               555 649 766
SMH350C 230 26~64 250-280           366 430 468 629 657
SMH350M 205 22~52 250-280         266 299 348 393 451
SMH350F 180 16~38 250-280     188 212 234 267 305 337
SMH550EC 450 38~89 400               890 1179 1380 1475 1566
SMH550C 350 31~76 400             800 850 1100 1288 1398
SMH550M 320 25~63 400           612 735 815 990 1137
SMH550F 268 19~52 400       376 412 500 620 725 867

Technical Date of SMH Series Short Head Hydraulic Cone Crushers:

Model Max Feeding Size(mm) Discharge Range(mm) Moter Power(kw) Capacity(t/h) -- open circuit,closed discharge(mm)
3 5 6 9 13 16 19 22 26 32 38
SMH120DC 70 6-9 75-90     59 68 96 110 130
SMH120DM 51 5-16 75-90   45 59 68 96 110
SMH120DF 35 3-13 75-90 30 45 50 65 90
SMH180DC 70 6-9 75-90     72 90 108 131 158
SMH180DM 51 5-16 75-90   68 76 95 118 145
SMH180DF 35 3-13 75-90   70 82 95 120
SMH250DC 89 9-22 160-220       100 120 145 175 210
SMH250DM 70 6-16 160-220     82 105 130 160
SMH250DF 54 5-16 160-220   80 90 110 135 160
SMH350DEC 133 13-25 250-280         280 310 340 370 390
SMH350DC 133 10-25 250-280       210 280 310 340 370 390
SMH350DM 89 6-19 250-280     130 168 215 260 290
SMH350DF 70 6-13 250-280     130 168 215
SMH550DEC 203 16-25 400           510 600 630 680 720 750
SMH550DC 178 13-25 400         455 488 552 600 620 698
SMH550DM 133 10-19 400       355 420 460 530 545 580
SMH550DF 105 6-16 400     220 310 375 428 482 497
