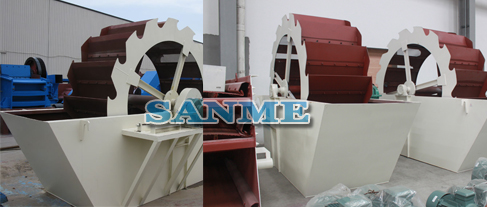

Sand Washer-SANME

Sand Washer

XS Series Sand Washer is a bucketed sand washer, mainly used to washing and drying building material.

XS Sand Washer

Sand washer features and benefits:

(1) Reasonable structure, convenient maintenance.
(2) High processing capacity and low power consumption.
(3) low of wearing parts consumption, low cost.

Sand Washer Product Introduction:

Feed size: ≤10mm
Capacity: 100-350t/h
Suitable raw material: medium and coarse material
Applications: road construction, hydropower and building construction.

Technology Advantages of XS Series Wheel Sand Washer:

XS Series Wheel Sand Washers are widely used in gravel plant, mine, building material, transportation, chemical industry, hydropower station, concrete mixing plant and so on for washing and screening materials.

1.Reasonable structure. The impeller drive bearing is isolated from water and materials buried in washer, which greatly avoid the bearing damaged because of soaking in water,sand and other pollutants.
2.Extremely rare lost of medium and fine sand, the grading and fineness module of washed building sand have achieved two national standards" sand for building" and" cobble and gravel for building".
3.Almost no wear parts except for the sieve mesh of sand washer.
4.High output and low power consumption.
5.Longer service life and convenient maintenance.
6.Save water resource.
7.No pollution and high cleaning degree.

Technical Data of XS Series Wheel Sand Washer:

Model XS2600 XS2600 II XS2800 XS3200 XS3600
Diameter of The Wheel Bucket(mm) 2600 2600 2800 3200 3600
Rotation Rater(r/min) 2.5 2.5 1.2 1 1
Maximum Feeding Size(mm) ≤ 10 ≤ 10 ≤ 10 ≤ 10 ≤ 10
Capacity
(t/h)
20~50 30~70 50~100 80~120 120~180
Motor Power(kw) 5.5 5.5 7.5 11 15
Overall Dimensions
(L×W×H)(mm)
3515×2070×2672 3515×2270×2672 3900×3300×2990 3965×4440×3410 4355×4505×3810
Weight(kg) 2500 2900 3980 7270 9430
