Sand Maker

Sand Maker is suitable for crushing and shaping soft or middle-hard or extremely hard materials, widely applied to pebble, rocks (limestone, granite, basalt, dolerite, andesite), iron ore tailings, artificial sand making of stone chips. Water conservancy and hydropower of engineering field, high-grade highways, expressway and railway, passenger railway, bridge, airport pavement, municipal engineering, sand manufacturing and aggregated rock shaping.

VSI Impact Sand maker is called as VSI Sand Maker for short, also called as The Third Generation Sand Maker or New-type Sand Maker. SANME introduced German technology, developed and manufactured this international level high performance new-type sand making equipment; it places an irreplaceable role in fine crushing.

downloadDownload the details about Sand Maker

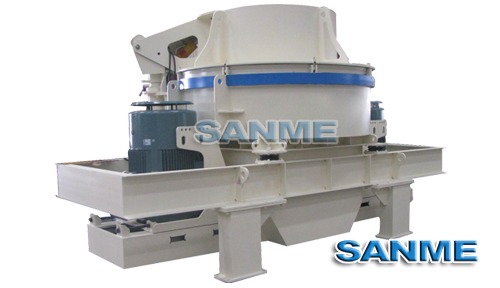

sand maker
Sand Maker

Usage of Sand Maker

1.Sand maker is used for producing building aggregate,concrete,aggregate for road surface and roadbed,asphalt concrete and cement concrete.

2.Sand maker  is also used for sand making and shaping in the field of engineering such as water conservancy,hydroelectric power,high-class highway,railway,bridage and municipal works.

3.Sand maker is used in fine crushing of ming industry such as building materials,metallurgy,chemical engineer,ming, anti-fire material,cement ect.

4.Sand maker is used for producing glass raw material and quartz sand ect.

Sand maker

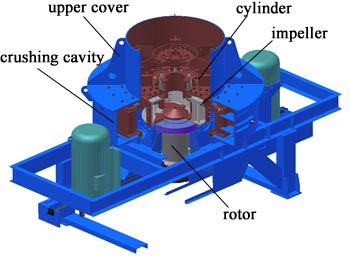

Sand maker working principle:

Material falls down to impellor cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen. Satisfactory material is transported by conveyor belt. However overlarge material will go back to Vertical Shaft Impact Crusher to be recrushed. Output sizes can be made according to customer’s requirement.

Application of sand maker

1. The manufacturing of artificial sand. There are various materials come in handy, such as river gravel, rocks (limestone, granite, basalt, diabase, etc.), ore tailings, stone chips and so on.

2. The production of construction aggregates, asphalt concrete, road pavement materials, bedding material, concrete aggregate and cement aggregate.

3. Production of manufactured sand and stone shaping in the engineering projects like water conservancy and hydropower, high-grade highways, expressways, high-speed rail, passenger dedicated lines, bridges, runways, municipal engineering and high-rise buildings.

4. Fine crushing of mining sector and material crushing of building materials, metallurgy, chemical industry, mining, refractory materials, cement and so on.

5. Production of high-purity materials like glass, quartz sand and others.

Sand Maker Features and Benefits:

1、Simple and reasonable structure, lost running cost.
2、Sand Maker High crushing rate, energy-saving.
3、It has fine crush and coarse grinding function.
4、Sand Maker is little affected by the moisture content, and the content can get up to about 8%.
5、Sand Maker is suitable to crush midium hard, hard special materials.
6、Excellent product of cubic shape, and small fraction of elongated flaky particle shape.
7、Small wear from Impeller liner, and easy maintenance.
8、Sand Maker working Noise is lower than 75 decibel, dust pollution.

Sand Maker Product LineData Parameters:

Model Max Feed Size(mm) Rotor Speed(r/min) Capacity(t/h) Motor Power(kw) Overall Dimensions(L×W×H)(mm) Weight(kg)
VSI-3000 45(70) 1700-2000 30-60 75-90 3080×1716×2126 ≤5310
VSI-4000 55(70) 1400-1620 50-90 110-150 4100×1916×2166 ≤7840
VSI-5000 65(80) 1330-1530 80-150 180-264 4300×2215×2427 ≤11200
VSI-6000 70(100) 1200-1400 120-250 264-320 5300×2728×2773 ≤14590
VSI-7000 70(100) 1000-1200 180-350 320-400 5300×2728×2863 ≤16580
VSI-8000 80(150) 1000-1100 250-380 400-440 6000×3000×3420 ≤23450
VSI-9000 80(150) 1000-1100 380-600 440-630 6000×3022×3425 ≤23980
