VC7 Series Vertical Shaft Impact Crusher is a new sand maker, which is high-functioned equipment for making sand and shaping, is researched and produced by our corporation, absorbed with the advanced technology from Germany, and owned advanced world standards. This equipment has two types: rock-on-rock and rock-on-iron.

The high velocity impact crushing achieved in this Series VSI improves the soundness and shape of stone, reducing product moisture and easing the screening task while producing superior products at a minimum cost. This autogenous crushing process produces the best-shaped aggregate on the market today.

Raw materials:Iron ore, copper ore, cement, artificial sand, fluorite, limestone, slag, etc.
Capacity:60-800t/h
Max feeding size:35mm-100mm
Application:Engineering, highway,railway, passenger line, bridges,airport runways,municipal engineering,high-rise

Vertical Shaft Impact Crusher

The chamber configuration of VC7 Series Vertical Shaft Impact Crusher:

1.Rock on anvil with round rotor
Application range: all rock types and the most abrasive materials Features: enclosed rotor and square anvils combine the grinding action of the rotor with the high efficiency reduction of anvils.

2.Rock on rock with round rotor
Application range: all rock types and the most abrasive materials Features: enclosed rotor and rock box configuration causes rock on rock crushing which produces the best shaped material with the lowest wear cost.

3.Rock on anvil with open rotor
Application range: large feed, mild to medium-abrasive materials Features: open rotor and rock on anvil configuration offers high tonnage of production, high reduction ratios and large feed size with equal conditions.

Vertical Impact Crusher

Features and Benefits of VC7 Series Vertical Shaft Impact Crusher:

1.Patented rotor
Deep rotor offers higher throughput; and unique rotor tip enhances service rate of alloy and extends maintenance interval.

2.Perfect interchange between ROR and ROA
Rock on rock configuration produces the best shaped and most consistent material with the lowest wear cost, which is suitable for all rock types, especially for most abrasive materials; rock on anvil configuration offers high reduction ratios and high efficiency of sand making, which is suitable for medium abrasive materials. Unique crushing chamber structure enables to achieve a rapid interchange between rock on rock configuration (ROR) and rock on anvil (ROA).

3.Rotor with thin oil lubrication
Compare with the traditional rotor with greasing lubrication, the rotor being lubricated by thin oil provides a wide speed range, which can meet various requirements for crushing different materials; patented seal configuration enables free-maintenance without exchanging the wear parts such as oil seal, etc.

4.Easy disassembly platform design
Unique platform structure not only provides access to operators for observing the feed and maintaining the equipment, but also protects the motor against wind and rain without affecting road transportation.

5.High automation
Enhanced automation makes normal maintenance easy; multiple protection measures reduce the down time and extend service life.

6.Superior particle shape
Superior cubical shape products with low content of flat and elongated particles are a result of the high velocity impact crushing principle of VSI crusher, which is particularly suitable for aggregate shaping and manufactured sand making, for instance producing the aggregate for high way construction.

7.Hydracascade feed technology
Patented feed adjustment device provides an accurate control of ratio between central feeding and the cascade. Hydracascade feed technology not only improved energy availability and increased throughput, but also managed product shape and fines content via cascade feed.

8.Super quality, high reliability
All series crushers are equipped with specified motors with the brand of Siemens JV, main bearing can be used by the products of domestic and international famous brands such as SKF, FAG, TWB and ZWZ, etc; key components such as lubrication station and wear parts are used by the products of domestic and international famous brands.

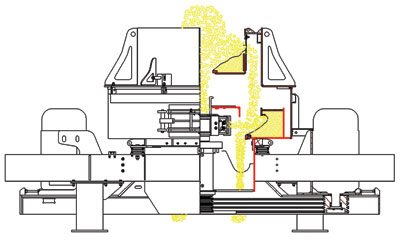

Working principle of VC7 Series Vertical Shaft Impact Crusher:

The materials fall into impeller with high-speed rotation vertically. On the force of high-speed centrifugal, the materials strike to the other part of material in a high speed. After mutual impacting, the materials will strike and rub between the impeller and the casing and then be discharged straight from the lower portion to form a closed multiple cycles. Final product is controlled by screening equipment to meet the requirement.

Technical Data of VC7(H) Series Vertical Shaft Impact Crusher:

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Capacity (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VC726L 1881-2499 35 60-102 102-176 110 3600*1969*2200 ≤6050
VC726M 70-126 120-211 132
VC726H 96-150 163-255 160
VC730L 1630-2166 40 109-153 185-260 180 4600*2150*2480 ≤8120
VC730M 135-200 229-340 220
VC730H 160-243 272-410 264
VC733L 1455-1934 55 200-260 340-442 320 5500*2563*3178 ≤11500
VC733M 240-320 408-540 400
VC733H 262-352 445-588 440
VC743L 1132-1504 60 252-348 428-580 440 5850*2740*3031 ≤17600
VC743M 280-390 480-660 500
VC743H 315-420 530-710 560

Technical Data of VCU7(H) Series Vertical Shaft Impact Crusher :

Model Rotation Speed of Impeller (r/min) Max Feed Size (mm) Capacity (t/h) (Full feeding center / center plus waterfall feeding) Motor Power (kw) Overall Dimensions (mm) Weight(motor not included) (kg)
VCU726L 1881-2499 55 86-143 122-211 110 3600*1969*2200 ≤5950
VCU726M 98-176 146-253 132
VCU726H 132-210 195-300 160
VCU730L 1630-2166 65 150-212 222-310 180 4600*2150*2482 ≤8030
VCU730M 186-280 275-408 220
VCU730H 220-340 326-480 264
VCU733L 1455-1934 80 230-338 336-497 264 5500*2563*3178 ≤11300
VCU733M 268-398 384-562 320
VCU733H 327-485 472-696 400
VCU743L 1132-1504 100 305-467 455-678 400 5850*2740*3031 ≤17800
VCU743M 335-506 493-746 440
VCU743H 375-540 536-800 500
