Impact Crusher

HC Series Impact Crusher is a new product that absorbs advanced technologies at home and abroad. This Series equipment can crusher material which max feed size is less than 500mm, compression strength is not more than 320 Mpa (eg: granite, limestone, concrete etc.) With its excellent performance and good performance, Impact Crusher is widely used in highway, hydroelectric, artificial stone and sand, crushing and building material industry etc.

downloadDownload Impact Crusher PDF

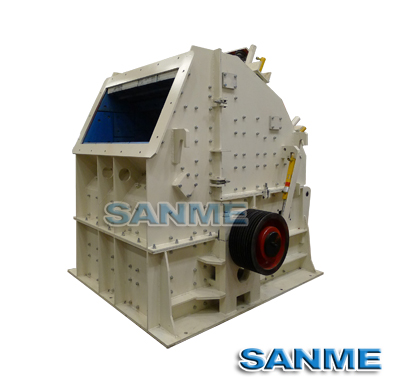

Impact Crusher

Impact Crushers has such advantages as:

simple in structure, large crushing ratio, low energy consumption, high output, light weight, cubic final product, and it is usde in mineral processing, chemical, cement, construction, refractory material, ceramics, glass, etc, such industrial sector for midium, fine and medium-hard materials. Eg: limestone, clinker, slag, carbon coke, coal etc. PF Series Impact Crusher has larger crushing ratio, and can make full use of the high-speed impacting energy of the entire rotor. However, due to the blow bar is easily to wear, so it is restricted in hard materials. So Impact Crusher is mainly usde in coarse, midium, and fine crush, such as, limestone, coal, Calcium Carbide, quartz, dolomite, sulfuration iron ore, gypsum, chemical raw material etc, under midium hard brittle material. the ideal size of PF Series Impact Crusher is from 100-500mm, the max feed size shouldn't exceed the specified value. Users can adjust the space between the hammer and Impact plate, components of the machine, then get the final product.

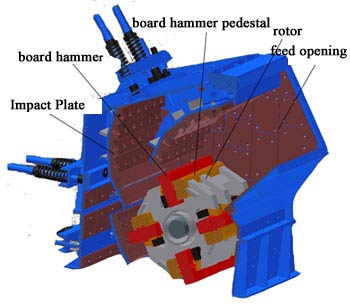

impact crushers working principle:

HC Series Impact Crusher use impact energy to crush materials. When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed, then discharged from the discharge port. Users can adjust the space between Impact Rack and Rotor Support, and then get to the expected size.

Chart of PF Impact Crusher
Chart of HC Impact Crusher

Impact Crusher Features and Benefits

1. Many cavity to crush, suitable for crushing hard rock.
2. Low and big feed opening make the production line easy to arrange and increase the size of feeding material.
3. New anti-abrasive material which prolong service life of impact hammer, impact plate and liner.

4. High-chromium plate hammer, unique Impact plate, especially for hard rock crushing, high efficiency and energy saving.
5. Hard stone crushing, high efficiency and energy saving.
6. Reasonable design of leveling plate making the finished material finer and cubic-shaped without internal cracks.
7. the shape of the products are cube, the discharge opening size can be adjusted.

8. Simplify the Crushing process.
9. Hydraulic start-up which is convenient for maintenance and replacement of wear-parts.

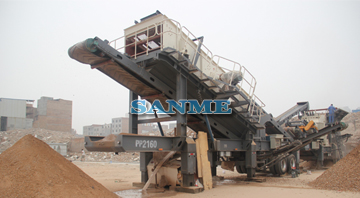

Impact Crushers Case
Impact Crusher Case

Impact crusher data parameters:

Model Discharge Range(mm) Max Feed Size(mm) Capacity(t/h) Motor Power(kw) Overall Dimension(L×W×H)(mm)
{Dimension in the bracket with Grinding Chamber}
Weight(Motor not included)(t)
HC128(A) 780*630 300 50-130 55-90 2890(3058)*1748*2932 10.8
HC139(A) 1100*630 400 130-210 90-132 2890(3058)*2048*2932 13.6
HC239(A) 1100*740 500 180-280 110-160 2926(3095)*2048*2864 14.7
HC255(A) 1450*760 500 200-300 160-200 2893(3095)*2398*2970 17.4
HC359(A) 1550*1070 700 220-330 200-250 3700*3025*3240 25.7
HC459(A) 1550*1130 750 300-460 250-315 3750(3754)*3022*3330 27.1
HC579(A) 2050*830 800 320-490 400-440 3582*3561*3266 36.3
HC679(A) 2050*1230 1100 480-750 400-440 3900*3600*3500 50.5
HC779(A) 2050*1670 1500 500-850 630 4770*4338*4849 78.9
HC887(A) 2540*1845 1600 800-1200 1000 5355*5399*5454 111.5
